U-45

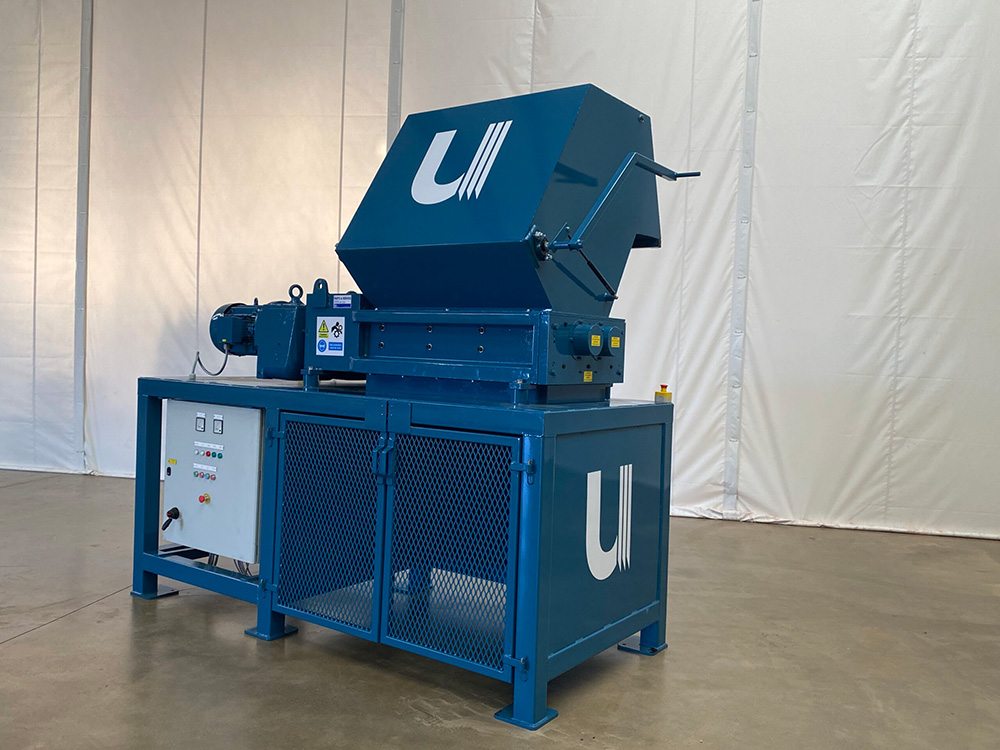

The large feed aperture of the U-45 allows it to accept bulky items and this, combined with its powerful 30kW drive, means that it has both the capacity and the torque to efficiently shred heavy duty, bulky plastic products. These include 1000 litre IBC plastic tanks, 200 litre drums, uPVC window and door frames plus panel mouldings.

Key Features

  • Up to 75% volume reduction
  • Economical product waste recycling
  • Self cleaning, counter rotational shafts for continuous shredding
  • Flexible feed and discharge arrangements available
  • Automatic reversing and overload protection system
  • Basic and smart control system options
  • Variety of knife and hook options to suit different products and shred size requirements

Alternative Applications

  • Confidential document and media destruction
  • Security destruction of production seconds and by-products
  • Stainless steel, food grade and pharmaceutical machines
  • Hydraulically driven, integrated marine waste processing systems
  • Mobile on-site shredding (also see U15/H shredder)
  • Air or belt conveyed feed and discharged shredding systems

U-45 General Specifications

 HeightWidthLengthWeight
General Assy2700mm1460mm2770mm2100kg
Shredder500mm1000mm2600mm1500kg
Drive Motor550mm475mm1150mm325kg
Safety Stand*1275mm1270mm2770mm450kg
Safety Hopper*1120mm1200mm1150mm100kg
Control Panel800mm800mm200mm50kg



Cutting Chamber Size1074mm x 524mm
Distance between shaft centres192mm
Size of shaft hexagon85mm A/F
Maximum knife diametre260mm
Maximum knife thickness31mm
Maximum weight of knife8kg
