U-7

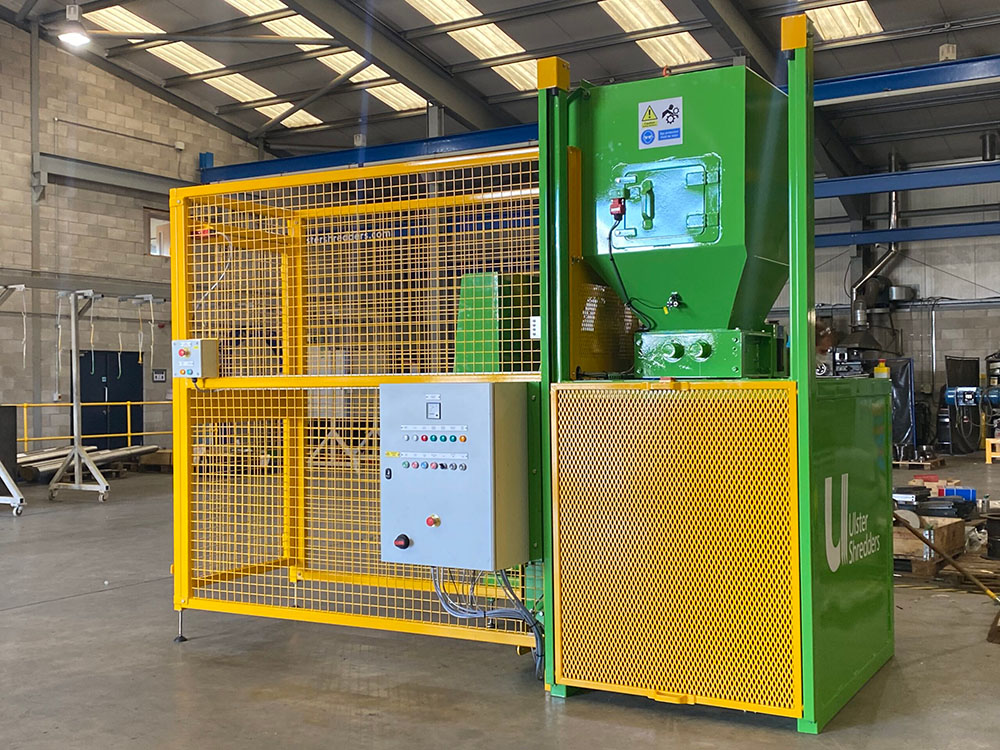

The U-7 is the smallest model in our range, making it an ideal entry level machine for small businesses wishing to shred for recycling, destruction or volume reduction purposes. It's compact design means it can be easily located in confined spaces.

Using the low speed, high torque shredding principal to reduce knife and drive-component wear, as well as noise and dust, it can comfortably shred a variety of plastic items, including CDs/DVDs/Video cassettes, plastic bottles and containers and PETdrinks bottles.

Key Features

  • Economical product waste recycling
  • Self cleaning, counter rotational shafts for continuous shredding
  • Flexible feed and discharge arrangements available
  • Automatic reversing and overload protection system
  • Basic and smart control system options
  • Variety of knife and hook options to suit different products and shred size requirements

Alternative Applications

  • Carpet trim
  • Tobacco
  • Small print-board packaging items
  • Light bushy machine tool swarf
  • Light steel press skeletons
  • Cans & glass bottles
  • Stainless steel, food grade and pharmaceutical machines
  • Hydraulically driven, integrated marine waste processing systems
  • Air or belt conveyed feed and discharged shredding systems

U-7 General Specifications

 HeightWidthLengthWeight
General Assy2115mm1125mm1460mm700kg
Shredder660mm520mm840mm400kg
Drive Motor450mm315mm300mm50kg
Safety Stand*1060mm860mm1460mm240kg
Safety Hopper*870mm950mm470mm40kg
Control Panel600mm400mm200mm20kg


Cutting Chamber Size430mm x 358mm
Distance between shaft centres129mm
Size of shaft hexagon41mm A/F
Maximum knife diametre190mm
Maximum knife thickness31mm
Maximum weight of knife5kg
